Alpha testing tutorials

Introduction: Why this matters

In most engineering orgs today, developers are blocked by ticket-based provisioning or overly rigid CI/CD flows. The new Orchestrator helps platform teams enable dynamic, policy-enforced environments that still respect governance, identity, and existing infra setups.

In this tutorial, you’ll step into the shoes of a developer or platform engineer at a fictional company, Acme Corp, learning how to:

  • Create projects and environments
  • Understand how dynamic configuration works
  • Deploy workloads with environment-specific values

Preparation: local test setup

You’re testing the first alpha release of the Canyon Orchestrator. Everything runs locally using Kubernetes-in-Docker (kind), simulating a real platform experience.

Prerequisites

Ensure you have:

📺 Need a walkthrough? Watch: Video walkthrough and demo

Installation instructions

  1. Download the latest release-X.tar archive: Download link
  • 🔐 Password: deploywithlove<3
  1. Extract the archive into a new directory (e.g., ~/Downloads/release-X)
  2. Open a terminal and navigate into the extracted directory:
cd ~/Downloads/release-X
  1. Run the install script:
./install.sh
  1. Set your environment variables:
export PATH=$(pwd):${PATH}
canyon config set-org alpha
canyon config set-url http://localhost:30080
  1. Verify everything is working:
canyon list projects

✅ If no error occurs, you’re good to go!

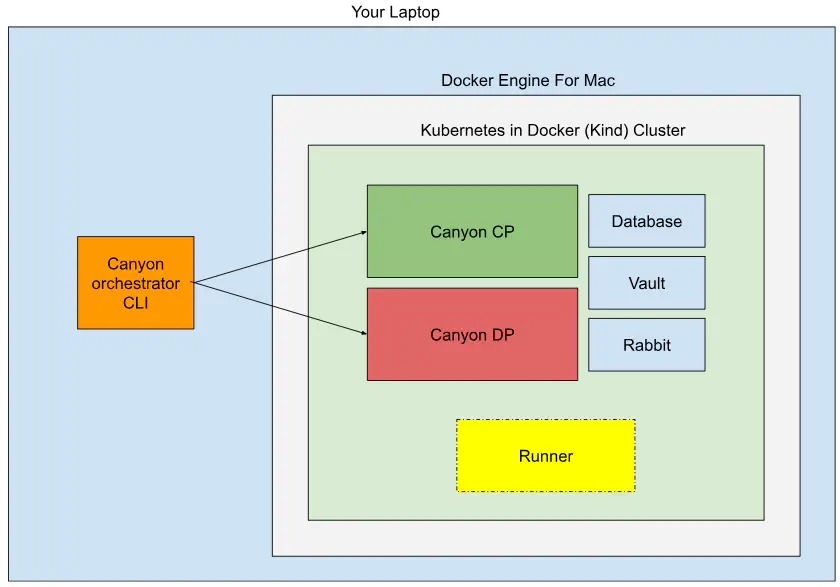

New Orchestrator alpha testing setup

Teardown

Done with your testing, or want to update to newer software versions?

  1. In the terminal, run kind delete cluster --name canyon
  2. Download the latest release-X.tar and follow the instructions again

Documentation, support and feedback

Got stuck? Head over to our Slack space  to get support.

Curious how it all works? Take a quick glance at the core concepts of the Orchestrator.

Got feedback? Please share it here .

Tutorial 1 - How developers Get dynamic configuration

Learn how the Orchestrator empowers self-service and policy-driven workload management.

Context: Why this matters

It is common for software development projects to use a sequence of stages, or environments, for continuous release and testing of their artefacts. The Orchestrator meets project teams in this development lifecycle by offering a configurable project/environment structure. A core capability of the Orchestrator is to then perform deployments into environments, and to dynamically make environment-specific adjustments of such parts that require them.

This tutorial shows how the Orchestrator:

  • Lets users maintain a project/environment structure
  • Performs deployments into an environment
  • Applies environment-specific, dynamic configuration of each deployment
  • Promotes a deployment from one environment to the next

Step 1: Create a project

Projects represent application or team boundaries. Let’s create one:

canyon create project my-project

View the project:

canyon get project my-project
canyon list projects

Check environments:

canyon list environments my-project

🧩 Challenge: There’s another project in the system. Can you find and list its environments?

Step 2: Add a development environment

Projects use environment types (like development, staging, prod) to define shared policies.

canyon create environment my-project development --set env_type_id=development

🧩 Challenge: What other environment types are available?

Step 3: Understand the manifest

Manifests define the desired state of an environment: workloads + shared resources.

Let’s try:

canyon get manifest my-project development

❌ You’ll get an error - there’s no deployment yet.

Step 4: Create and deploy an empty manifest

Create a file named manifest.yaml:

workloads: {}

Deploy it:

canyon deploy my-project development ./manifest.yaml

This will succeed, but deploy nothing (empty manifest).

🧩 Challenge: Can you inspect the manifest of another project’s environment?

Step 5: Add a workload with dynamic config

List available resource types for this environment:

canyon list available-resource-types my-project development

Look for environment - this resource provides context variables like color and animal.

Update your manifest.yaml:

workloads:
  main:
    resources:
      env:
        type: environment
    variables:
      KEY: value
      COLOR: ${resources.env.outputs.values.color}
      ANIMAL: ${resources.env.outputs.values.animal}

Deploy it:

canyon deploy my-project development ./manifest.yaml

By default, outputs are not returned (for security). Use:

canyon deploy my-project development ./manifest.yaml --output -

Outputs are securely passed via ephemeral encryption and never stored by the Orchestrator.

🧩 Challenge: Try adding these flags to see how behavior changes:

--dry-run
--no-prompt
--plan-only

Step 6: Promote to production

Let’s simulate promoting your workload from development to production.

Create a prod environment:

canyon create environment my-project production --set env_type_id=production

Promote:

canyon deploy my-project production environment://development

To fetch outputs:

canyon deploy my-project production deployment://HEAD --output -

You’ll now see that outputs differ between dev and prod - a core feature of dynamic config by context.

Step 7: Understand why this worked

You can create projects and environments and deploy to them. But why did you see those other values in production, although the deployment was promoted from development without any changes?

The key is that the Orchestrator objects may contain dynamic elements, including “the current environment”. These elements will resolve to an environment-specific value, producing a different result without requiring any code changes in the application. In the present tutorial, the install script created a set of Kubernetes secrets named after the environments, and each deployment is reading its values from the secret for “the current environment”. In a real-world setup, dynamic configuration may change anything from a simple value to provisioning a different size or implementation of a resource.

Final Challenge: Inspect what matched

Use the CLI to inspect how the environment resource was resolved.

# Find matching module and rule
canyon get manifest my-project production
# Identify the resource → get its module ID
canyon get module <module_id>
# Inspect the rule that caused this match
canyon list rules

You’ll see how modules and rules enable dynamic provisioning logic.

Recap

You’ve:

  • Created a project and environments
  • Understood the purpose of environment types
  • Deployed a manifest with dynamic variables
  • Promoted a manifest across environments
  • Seen how environment context drives configuration

Submit Feedback

Submit your feedback  - especially if something didn’t work or felt confusing.

Tutorial 2 - Deploying a Score application with real infrastructure dependencies

Learn how the Orchestrator turns a declarative workload spec into real provisioned infrastructure.

Context: why this matters

In Tutorial 1, you saw how dynamic configuration is injected based on the environment context. But real workloads don’t run in a vacuum - they depend on infrastructure: storage buckets, secrets, access keys, and compute runtimes.

This tutorial shows how the Orchestrator:

  • Converts a Score specification into a deployable workload
  • Provisions dependent infrastructure resources in the right order
  • Injects outputs dynamically into your running container

System setup recap

The installation script (install.sh) from Tutorial 1 already set up:

  • A local Kubernetes cluster via Kind
  • An in-cluster MinIO object store (S3-compatible)
  • A module to convert Score specs into Kubernetes deployments

Step 1: Understand what you’re about to deploy

In this tutorial, you’ll:

  • Deploy a Score-defined app that lists files in an S3 bucket
  • Use the Orchestrator to provision:
    • The S3 bucket
    • An access key for that bucket
    • The application container, with the key injected as variables

The runtime will be your local Kind cluster. The MinIO bucket acts as our S3 implementation.

Step 2: Verify modules are set

Check that the score-k8s module is in place:

canyon get module score-k8s

This points to a module that knows how to take a Score workload and deploy it to Kubernetes using Terraform: https://github.com/humanitec/module-definition-library/tree/preview/score-workload/kubernetes

Step 3: Write your Score file

Create a new file named score.yaml:

apiVersion: score.dev/v1b1
metadata:
  name: my-app
containers:
  main:
    image: minio/mc
    command: ["/bin/sh", "-c", "mc alias set minio http://minio:9000 $BUCKET_ACCESS_KEY_ID $BUCKET_SECRET_KEY; while true; do date; mc ls --summarize minio/$BUCKET; sleep 5; done"]
    variables:
      BUCKET_ACCESS_KEY_ID: ${resources.bucket-key.access_key_id}
      BUCKET_SECRET_KEY: ${resources.bucket-key.secret_key}
      BUCKET: ${resources.bucket.bucket}
resources:
  bucket:
    type: s3
  bucket-key:
    type: s3-access-key
    params:
      for: ["${resources.bucket.bucket}"]

What this app does: Runs an infinite loop in a container that lists contents of a provisioned bucket using credentials injected at runtime.

Step 4: Deploy the Score app

We’ll deploy into the same project and environment from Tutorial 1:

canyon score deploy my-project development ./score.yaml

This command:

  • Patches the manifest
  • Adds a new workload my-app
  • Links it to s3 and s3-access-key resources

Step 5: Verify deployment

Check that the Kubernetes deployment exists:

kubectl get deployment my-app

Check container logs:

kubectl logs deployment/my-app

You should see lines like:

Total Size: 0 B
Total Objects: 0

Challenge: Inspect the deployment internals

Where do those environment variables come from?

kubectl get deployment my-app -o yaml
kubectl exec deployment/my-app -- env | grep BUCKET

Then, inspect the resulting manifest:

canyon get manifest my-project development

You should now see:

  • A bucket resource (MinIO)
  • A bucket-key (access credentials)
  • A score-workload (your application)

Step 6: Understand Why This Worked

Let’s trace what just happened:

Why did the s3 resource create a MinIO bucket?

canyon list available-resource-types my-project development

The s3 type is mapped to the in-cluster-minio module.

Check the module:

canyon get module in-cluster-minio

It uses: https://github.com/humanitec/module-definition-library/tree/preview/s3/minio

How is it connected to the real MinIO backend?

canyon get provider minio default

The provider is configured to connect to the in-cluster MinIO service, with auth values injected from Kubernetes secrets.

Why did the Score workload get deployed to Kubernetes?

Score supports multiple runtimes, but in your current config:

canyon get module score-k8s

…is enforced by a rule for the score-workload resource type.

It uses Terraform code that translates Score into a valid Kubernetes Deployment: https://github.com/humanitec/module-definition-library/blob/preview/score-workload/kubernetes/main.tf

Recap

You’ve:

  • Written a declarative Score spec
  • Let the Orchestrator provision infra dependencies
  • Verified a working deployment to Kubernetes
  • Traced exactly how this happened via modules and providers

Final Challenge

Use get and list commands to:

  • Explore how the right modules were matched
  • Inspect the modules and rule that triggered the S3 bucket deployment
  • Find how secrets were injected into the workload

Submit Feedback

Submit your feedback  - especially if something didn’t work or felt confusing.

Next Up

Tutorial 3 - Working with the active resource graph

Learn how to view and query the resource graph of an environment.

You’ll explore how the Orchestrator represents workloads and dependencies as a graph, and how to navigate and debug resource relationships.

Tutorial 4 - Writing modules

Understand how platform engineers can build reusable Terraform-based modules.

You’ll create and share modules that can provision infrastructure or deploy workloads across any environment that supports a Terraform provider - cloud or on-prem.
